Proseal GT0e
The compact automatic tray sealer that brings full vacuum into the line
The GT0e is the most compact of Proseal's automatic tray sealers: 2.6 metres of footprint for medium capacity and the ability to pack atmospheric, MAP, vacuum and skin. Up to 36 packs per minute with a three-impression tool, with full vacuum facility on board.
Proseal · JBT Marel — distributed and serviced by VG Service
Why choose the Proseal GT0e
Up to 36 packs per minute
With a three-impression tool and 20 cycles per minute on standard seal: the right capacity to grow without moving to a nine-metre line.

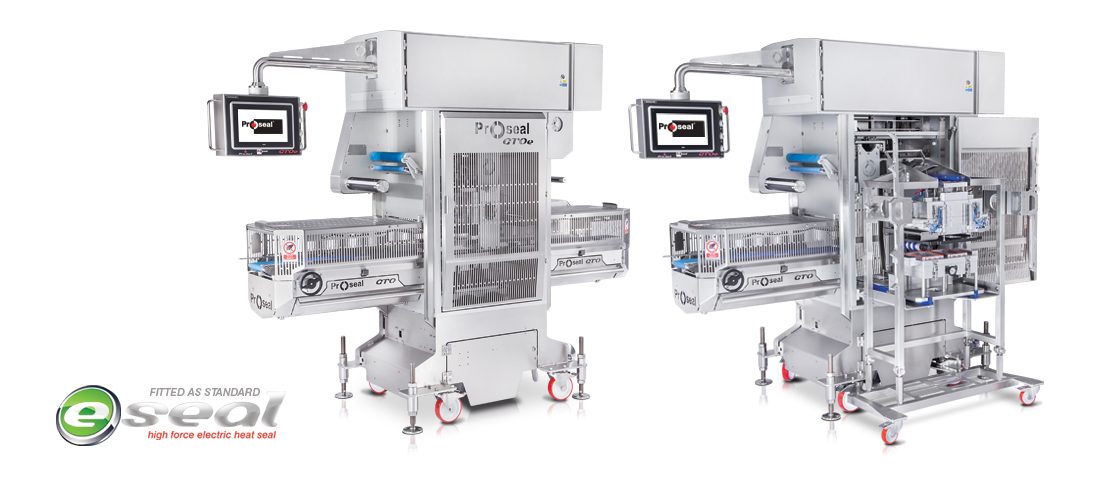

Eseal® electric sealing
Proseal's all-electric sealing system delivers high, constant seal force with lower energy consumption and no drift over time: the last pack of the shift seals exactly like the first.
Five-minute tool changeover

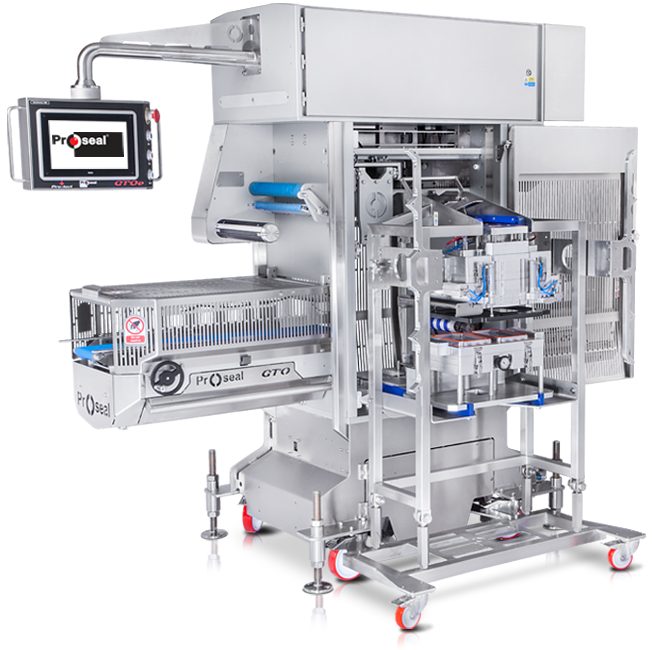

With the Auto Tool system the machine recognises the fitted tool, connects the services by itself and loads the correct recipe. Changeovers stop being downtime.
Every seal type on one machine
Atmospheric, MAP, VMAP (vacuum + gas), Skin, Skin Plus and Skin Deep. Options can be added or removed after purchase, so the machine follows your market.
Promotion continuous-motion infeed
The modular conveyor accepts randomly spaced trays from any upstream line and indexes them automatically: no synchronisation to set, no dedicated operator.
Fast hygiene and maintenance
QR conveyors with tool-free quick-release belts, lubrication-free polymer bearings, smooth surfaces and full Category 3 guarding: quick sanitation, less downtime.
Main specifications — Proseal GT0e
| Maximum output | 36 packs/min (3-impression tool) |
|---|---|
| Cycles per minute | 20 standard · 14 gas flush · 12 vacuum/gas · 5 Skin Deep |
| Trays per cycle | 1 to 4 |
| Max tray size | 439 × 300 mm (Ø 300 mm), 120 mm deep |
| Dimensions (L×W×H) | 2,585 × 975 × 2,187 mm |
| Weight | 1,250 kg |
| Power supply | 400 V 3-phase + neutral, 16 A (208/480/600 V available) |
| Air supply | 6 Bar, 50 L/min (707 L/min for Skin Deep) |
| Seal types | Atmospheric, MAP (gas flush), VMAP (vacuum + gas), Skin, Skin Plus, Skin Deep |
| Tray materials | C-PET, A-PET, R-PET, polypropylene, PVC/styrene, board, paper, smooth-wall foil |
| Lidding film | Co-extruded and laminated polyester films, foil, board, paper |
Dimensions and layout — Proseal GT0e

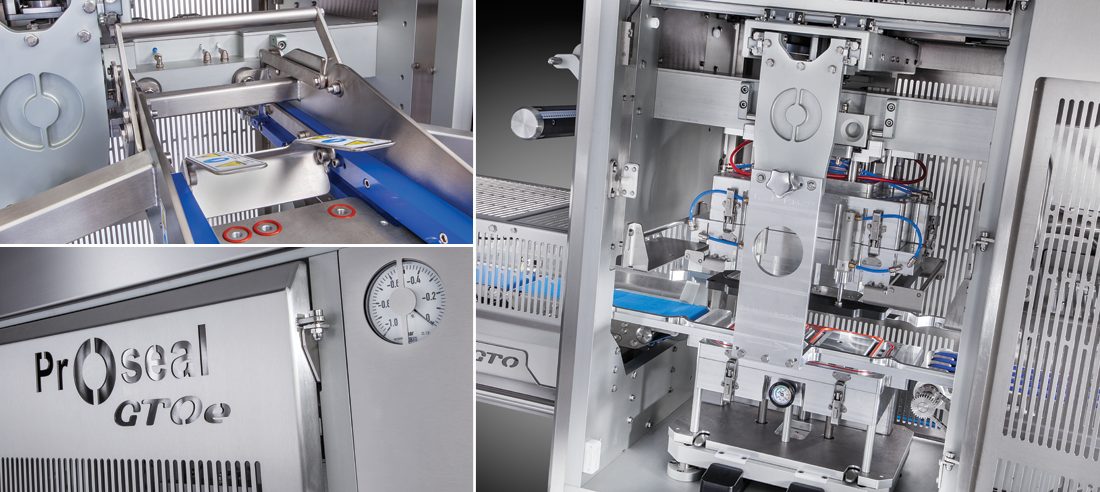

Proseal GT0e in detail
Want to know if this is the right machine for your product?
We help you choose format, tooling and seal type, with service and spare parts backed by VG Service.
