Proseal GT1e
Large capacity and high speed in just over three metres
The GT1e raises the bar: up to 60 packs per minute with a five-impression tool, full vacuum on board and the same sealing flexibility as the whole range. Industrial output in a sensible footprint.
Proseal · JBT Marel — distributed and serviced by VG Service
Why choose the Proseal GT1e
Up to 60 packs per minute
With a five-impression tool: industrial-line output in a 3.2-metre footprint.

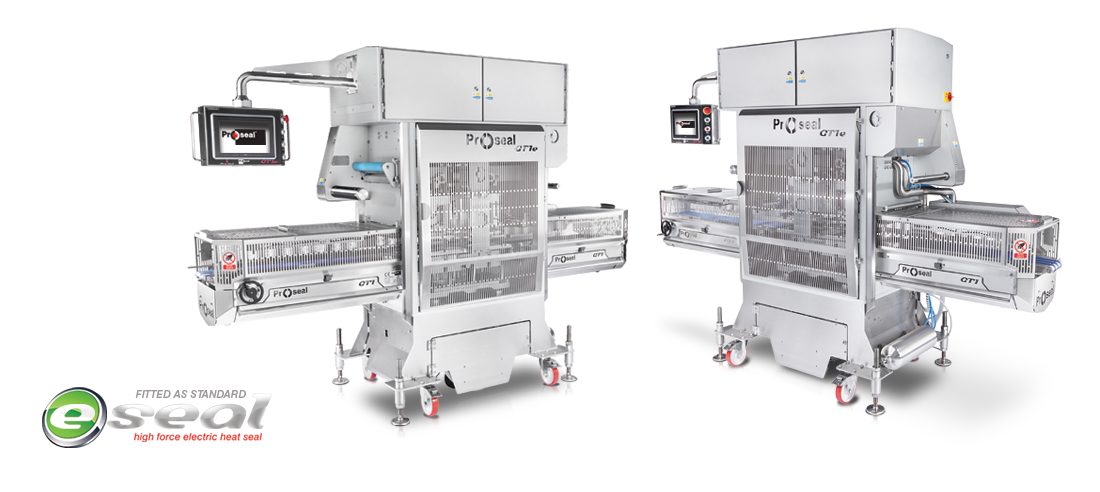

Eseal® electric sealing
Proseal's all-electric sealing system delivers high, constant seal force with lower energy consumption and no drift over time: the last pack of the shift seals exactly like the first.
Five-minute tool changeover
With the Auto Tool system the machine recognises the fitted tool, connects the services by itself and loads the correct recipe. Changeovers stop being downtime.
Every seal type on one machine
Atmospheric, MAP, VMAP (vacuum + gas), Skin, Skin Plus and Skin Deep. Options can be added or removed after purchase, so the machine follows your market.
Promotion continuous-motion infeed
The modular conveyor accepts randomly spaced trays from any upstream line and indexes them automatically: no synchronisation to set, no dedicated operator.
Built to sit in a line
Integrates with de-nesters, fillers, checkweighers, metal detectors, labellers and end-of-line equipment: the tray sealer is a link in your plant, not an island.
Main specifications — Proseal GT1e
| Maximum output | 60 packs/min (5-impression tool) |
|---|---|
| Cycles per minute | 20 standard · 14 gas flush · 12 vacuum/gas · 5 Skin Deep |
| Trays per cycle | 1 to 5 |
| Max tray size | 670 × 300 mm (Ø 300 mm), 120 mm deep |
| Dimensions (L×W×H) | 3,222 × 976 × 2,188 mm |
| Weight | 1,350 kg |
| Power supply | 400 V 3-phase + neutral, 16 A (208/480/600 V available) |
| Air supply | 6 Bar, 50 L/min (707 L/min for Skin Deep) |
| Seal types | Atmospheric, MAP (gas flush), VMAP (vacuum + gas), Skin, Skin Plus, Skin Deep |
| Tray materials | C-PET, A-PET, R-PET, polypropylene, PVC/styrene, board, paper, smooth-wall foil |
| Lidding film | Co-extruded and laminated polyester films, foil, board, paper |

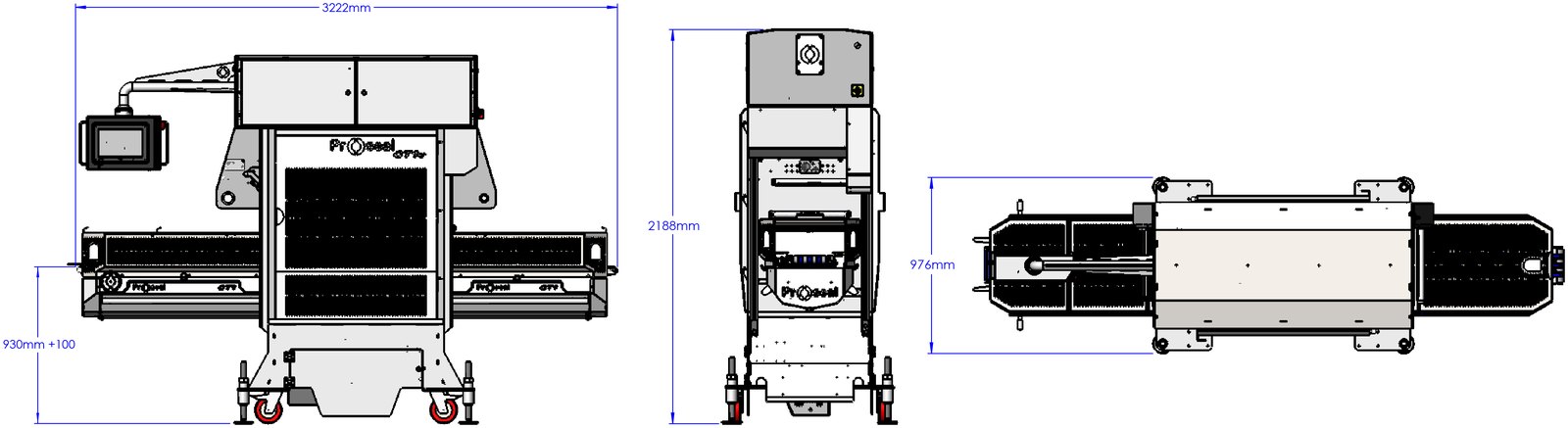

Dimensions and layout — Proseal GT1e

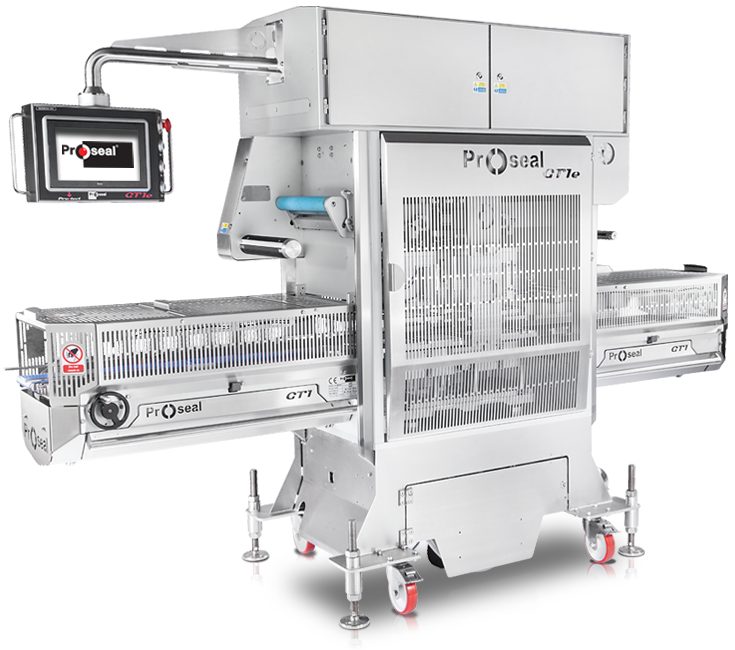

Proseal GT1e in detail
Want to know if this is the right machine for your product?
We help you choose format, tooling and seal type, with service and spare parts backed by VG Service.
