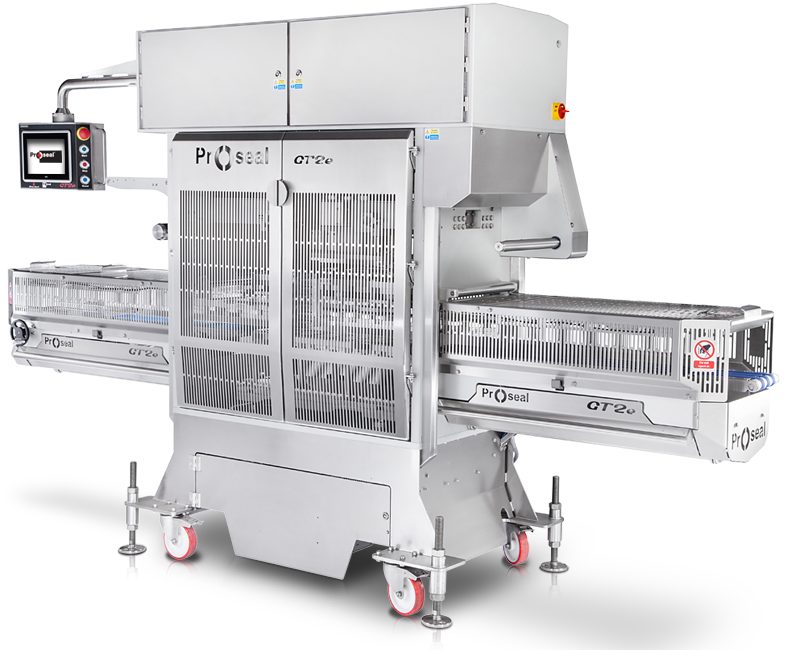

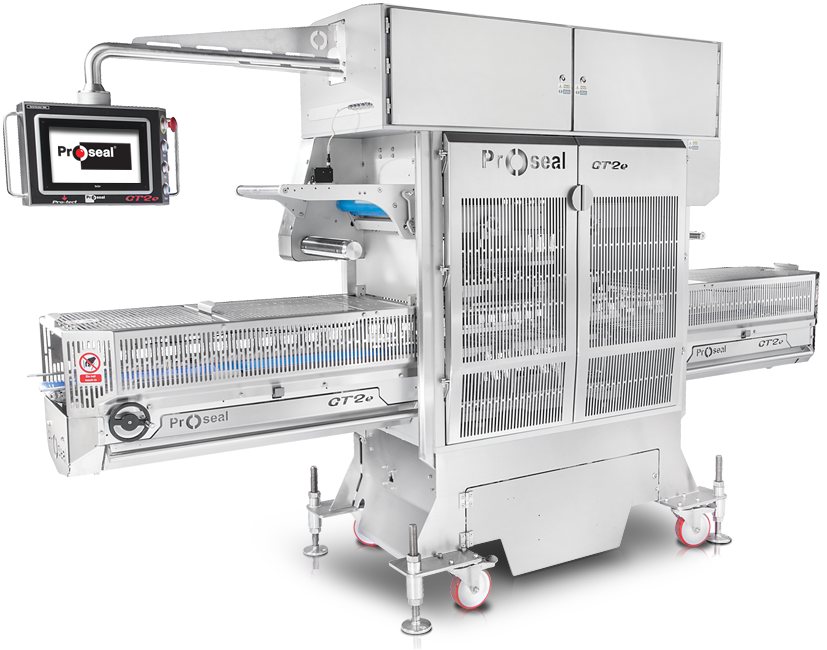

Proseal GT2e
Seventy-two packs a minute, with nothing given up
With a six-impression tool the GT2e reaches 72 packs per minute while keeping every sealing option in the range. The natural step when volumes grow and changeovers still have to be quick.
Proseal · JBT Marel — distributed and serviced by VG Service
Why choose the Proseal GT2e
Up to 72 packs per minute
Six-impression tooling and trays up to 815 mm of usable width: serious volume on a single lane.

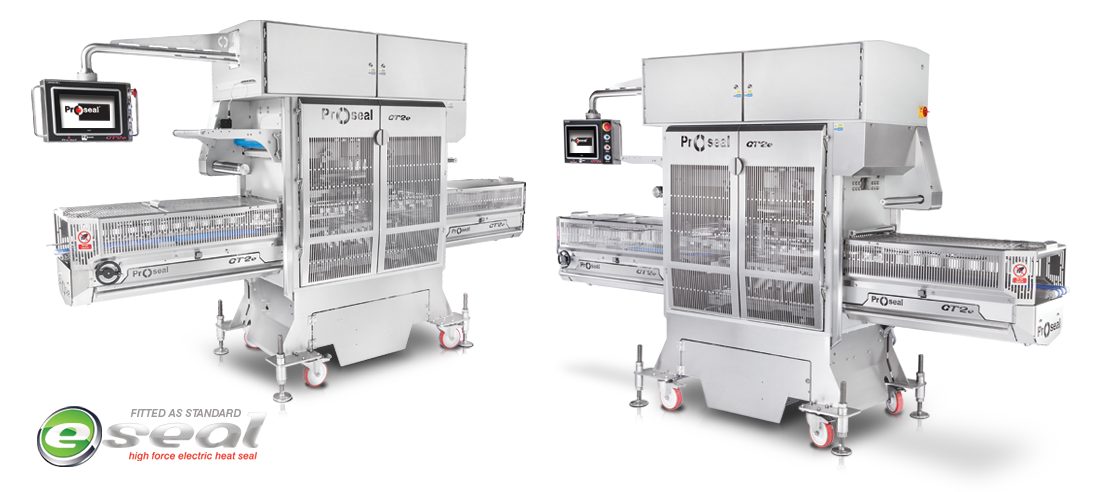

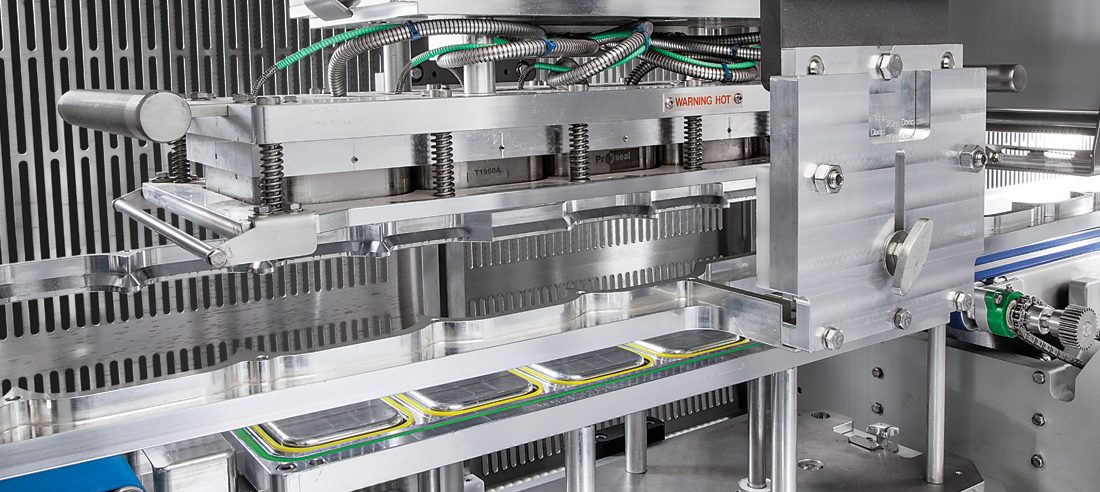

Eseal® electric sealing
Proseal's all-electric sealing system delivers high, constant seal force with lower energy consumption and no drift over time: the last pack of the shift seals exactly like the first.
Five-minute tool changeover
With the Auto Tool system the machine recognises the fitted tool, connects the services by itself and loads the correct recipe. Changeovers stop being downtime.
Every seal type on one machine
Atmospheric, MAP, VMAP (vacuum + gas), Skin, Skin Plus and Skin Deep. Options can be added or removed after purchase, so the machine follows your market.
On-board control and recipes
Colour touchscreen HMI on a swing arm, usable from both sides of the line. Recipes, self-diagnostics, film snap detection and pot-crush avoidance as standard.
Fast hygiene and maintenance
QR conveyors with tool-free quick-release belts, lubrication-free polymer bearings, smooth surfaces and full Category 3 guarding: quick sanitation, less downtime.
Main specifications — Proseal GT2e
| Maximum output | 72 packs/min (6-impression tool) |
|---|---|
| Cycles per minute | 20 standard · 14 gas flush · 12 vacuum/gas · 5 Skin Deep |
| Trays per cycle | 1 to 6 |
| Max tray size | 815 × 300 mm, 120 mm deep |
| Dimensions (L×W×H) | 3,658 × 976 × 2,188 mm |
| Weight | 1,450 kg |
| Power supply | 400 V 3-phase + neutral, 16 A (480/600 V available) |
| Air supply | 6 Bar, 50 L/min (707 L/min for Skin Deep) |
| Seal types | Atmospheric, MAP (gas flush), VMAP (vacuum + gas), Skin, Skin Plus, Skin Deep |
| Tray materials | C-PET, A-PET, R-PET, polypropylene, PVC/styrene, board, paper, smooth-wall foil |
| Lidding film | Co-extruded and laminated polyester films, foil, board, paper |

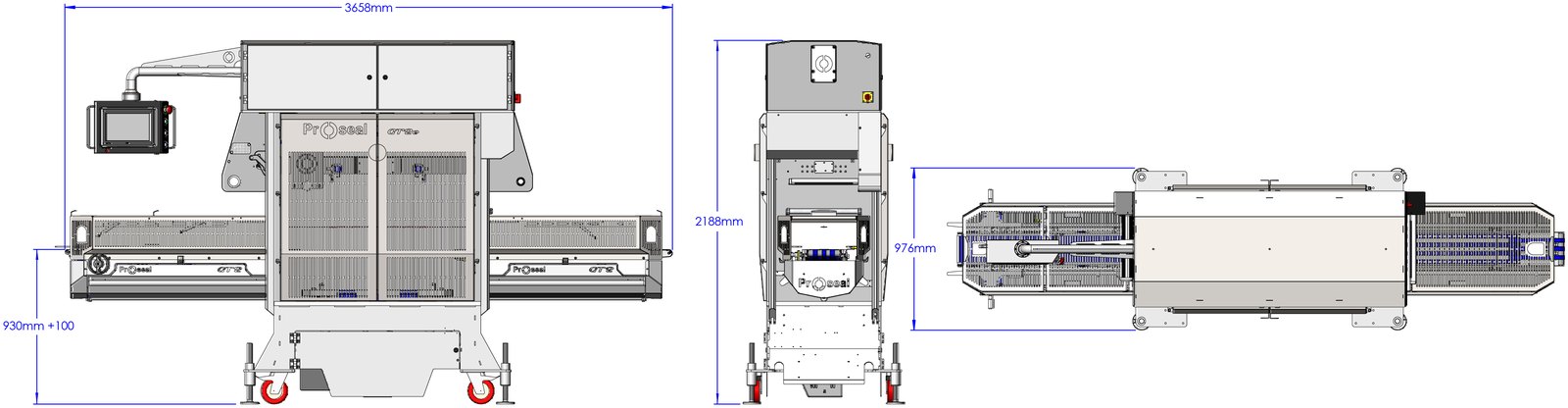

Dimensions and layout — Proseal GT2e
Proseal GT2e in detail
Want to know if this is the right machine for your product?
We help you choose format, tooling and seal type, with service and spare parts backed by VG Service.
