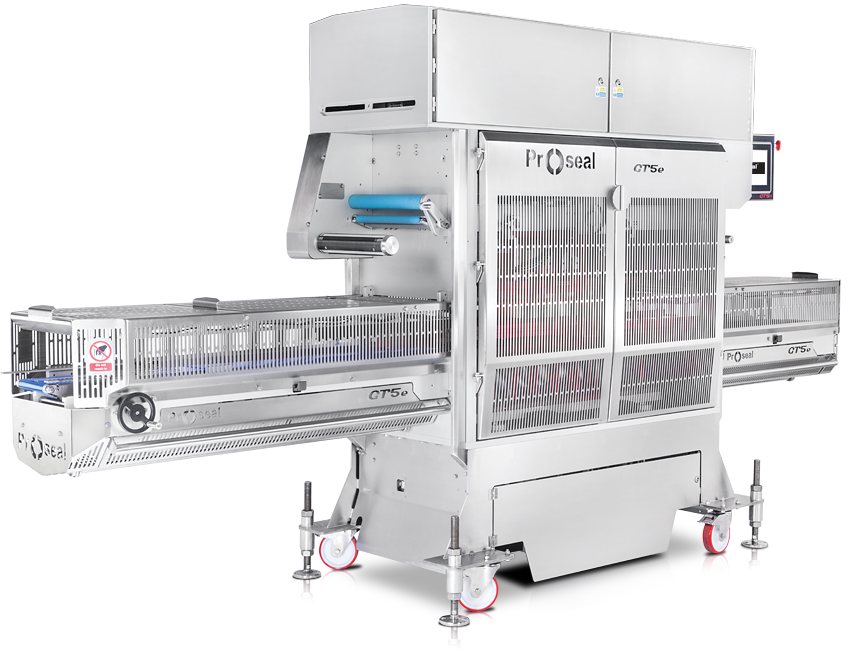

Proseal GT5e
Extra-large capacity, single lane
With an eight-impression tool the GT5e reaches 96 packs per minute while remaining a modular single-lane system, easy to integrate with de-nesters, fillers and labellers. The answer when packing is the bottleneck.
Proseal · JBT Marel — distributed and serviced by VG Service
Why choose the Proseal GT5e
Up to 96 packs per minute
Eight impressions on one lane: the capacity of two machines with the management of one.

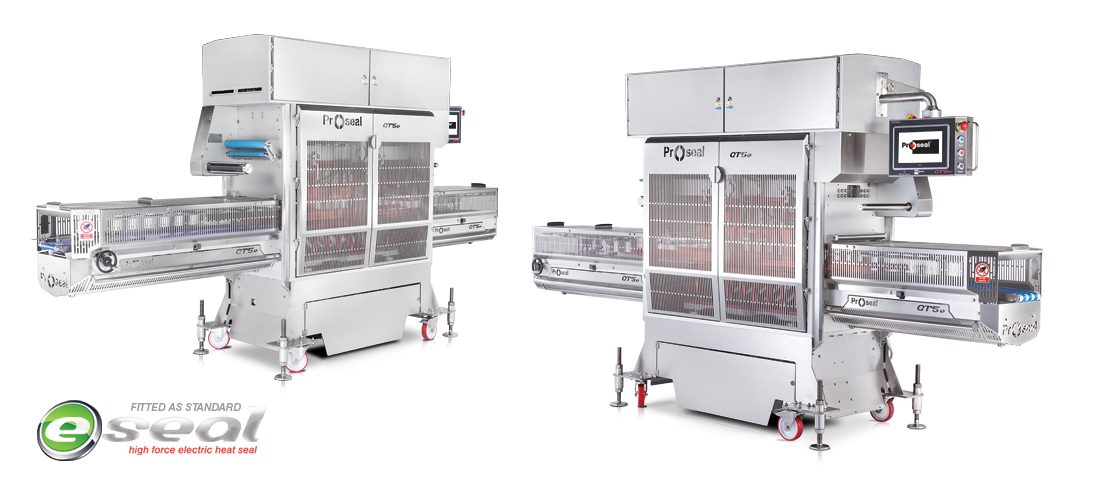

Eseal® electric sealing
Proseal's all-electric sealing system delivers high, constant seal force with lower energy consumption and no drift over time: the last pack of the shift seals exactly like the first.
Five-minute tool changeover
With the Auto Tool system the machine recognises the fitted tool, connects the services by itself and loads the correct recipe. Changeovers stop being downtime.
Every seal type on one machine
Atmospheric, MAP, VMAP (vacuum + gas), Skin, Skin Plus and Skin Deep. Options can be added or removed after purchase, so the machine follows your market.
Built to sit in a line
Integrates with de-nesters, fillers, checkweighers, metal detectors, labellers and end-of-line equipment: the tray sealer is a link in your plant, not an island.
Fast hygiene and maintenance
QR conveyors with tool-free quick-release belts, lubrication-free polymer bearings, smooth surfaces and full Category 3 guarding: quick sanitation, less downtime.
Main specifications — Proseal GT5e
| Maximum output | 96 packs/min (8-impression tool) |
|---|---|
| Cycles per minute | 20 standard · 14 gas flush · 12 vacuum/gas · 5 Skin Deep |
| Trays per cycle | 2 to 8 |
| Tray width | from 531 mm (2 impressions) to 112 mm (8 impressions), 300 mm long |
| Dimensions (L×W×H) | 4,213 × 975 × 2,187 mm |
| Weight | 1,750 kg |
| Power supply | 400 V 3-phase + neutral, 16 A (480/600 V available) |
| Air supply | 6 Bar, 50 L/min (707 L/min for Skin Deep) |
| Seal types | Atmospheric, MAP (gas flush), VMAP (vacuum + gas), Skin, Skin Plus, Skin Deep |
| Tray materials | C-PET, A-PET, R-PET, polypropylene, PVC/styrene, board, paper, smooth-wall foil |
| Lidding film | Co-extruded and laminated polyester films, foil, board, paper |

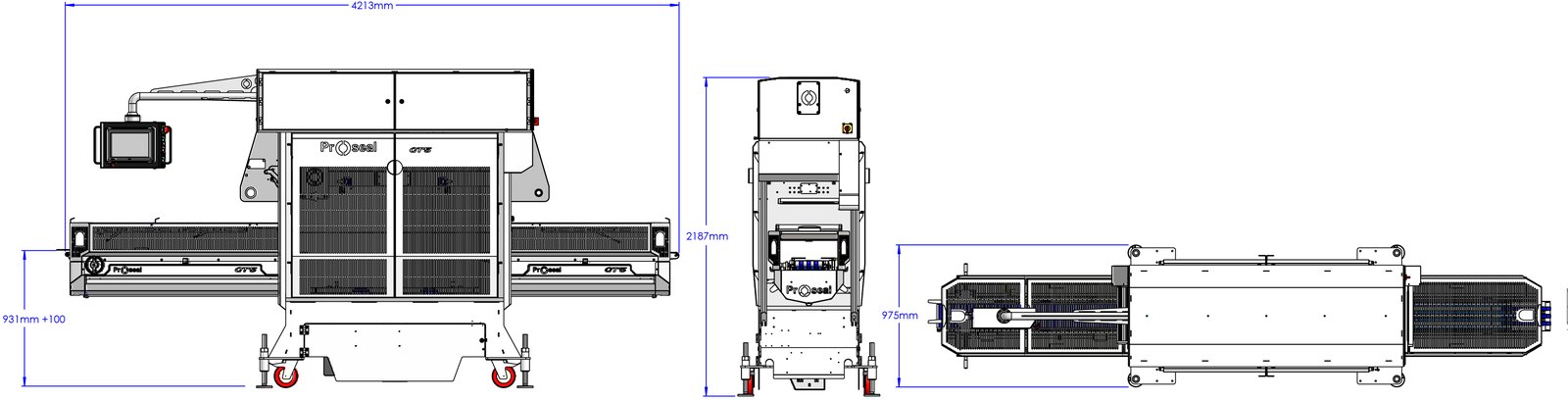

Dimensions and layout — Proseal GT5e

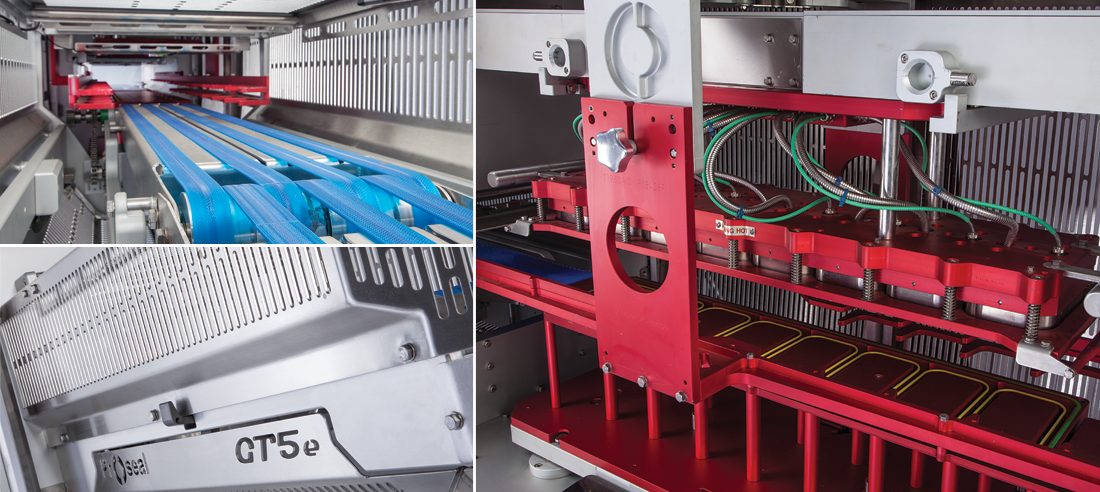

Proseal GT5e in detail
Want to know if this is the right machine for your product?
We help you choose format, tooling and seal type, with service and spare parts backed by VG Service.
