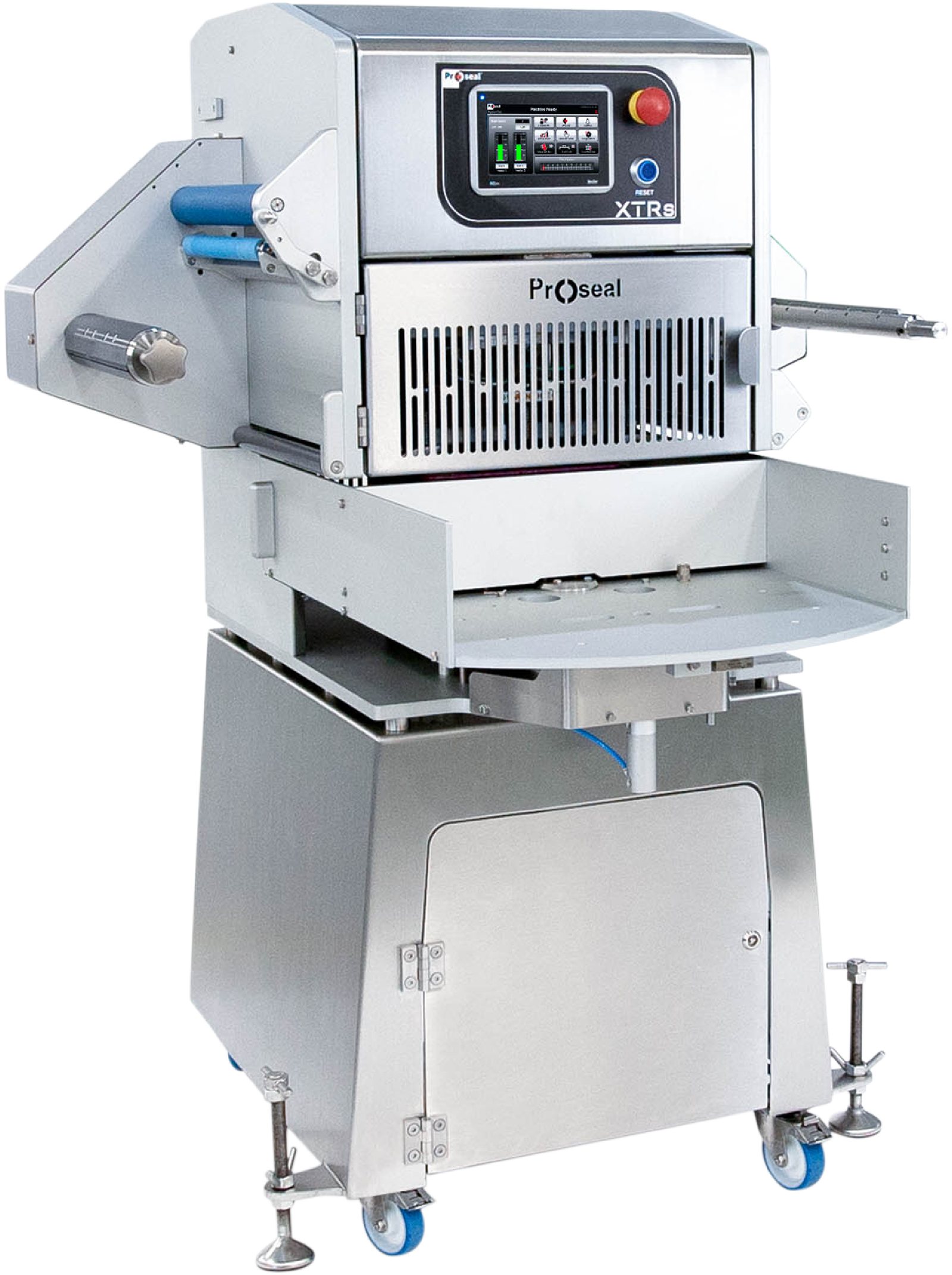

Proseal XTRs
All electric, no compressed air, ready in five minutes
The XTRs is the two-station rotary semi-automatic that replaces the long-running GTR: 30 packs per minute with a two-impression tool, fully electric operation with no compressed air, and compatibility with the GTR tooling you already own.
Proseal · JBT Marel — distributed and serviced by VG Service
Why choose the Proseal XTRs
30 packs per minute
With a two-impression tool: the output small producers, delis and craft operations actually need.
All electric, no compressed air
No pneumatic installation required: more consistent seal force, lower consumption and running costs.
Five-minute tool change
Automatic tool lock and quick release: move from one format to another without tools.
GTR tooling compatible
If you already run a GTR you can keep your existing tools and protect that investment.
Optional MAP
Gas flush can be added when needed, extending shelf life without changing machine.
Portable and hygienic
446 kg on castors, open design and accessible surfaces: move it where it is needed, clean it in minutes.
Main specifications — Proseal XTRs
| Maximum output | 30 packs/min (2-impression tool) |
|---|---|
| Machine type | Two-station rotary semi-automatic |
| Seal types | Atmospheric · optional MAP (gas flush) |
| Trays per cycle | 1 to 4 |
| Max tray size | 438 × 270 mm (Ø 270 mm), 105 mm deep |
| Dimensions (L×W×H) | 1,257 × 1,240 × 1,695 mm |
| Weight | 446 kg |
| Power supply | 200 V, 16 A |
| Air supply | Not required |
| Tooling compatibility | Proseal GTR tools |
| Tray materials | C-PET, A-PET, R-PET, polypropylene, PVC/styrene, board, paper, smooth-wall foil |
| Lidding film | Co-extruded and laminated polyester films, foil, board, paper |

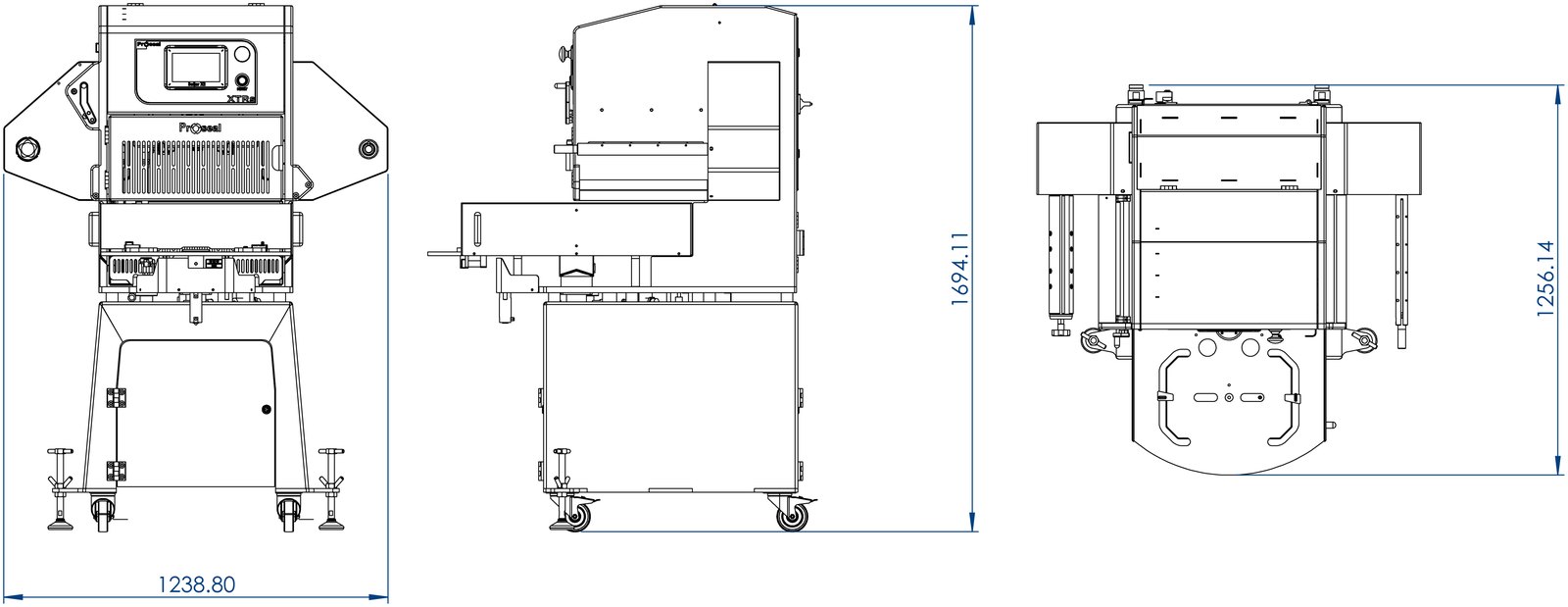

Dimensions and layout — Proseal XTRs

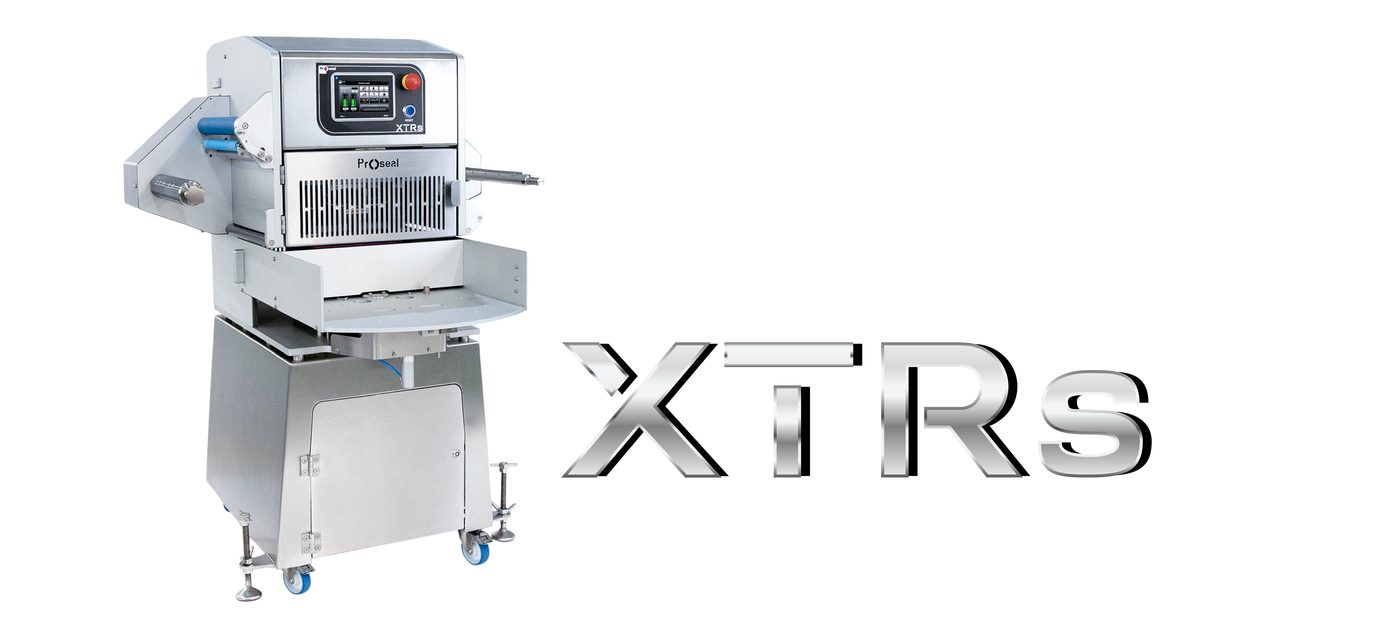

Proseal XTRs in detail
Want to know if this is the right machine for your product?
We help you choose format, tooling and seal type, with service and spare parts backed by VG Service.
