Schröder IMAX HIGHline belt
The injector for fish, poultry and small products: up to 900 needles and 497 m²/h

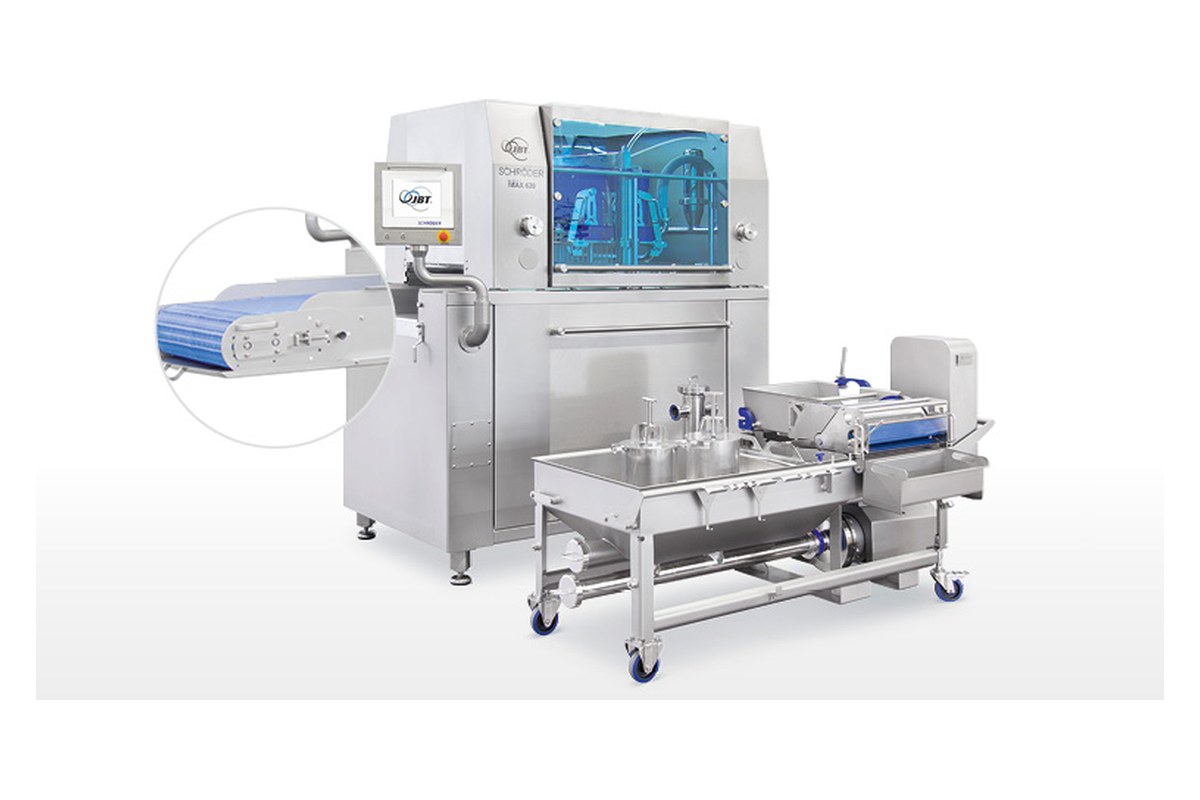

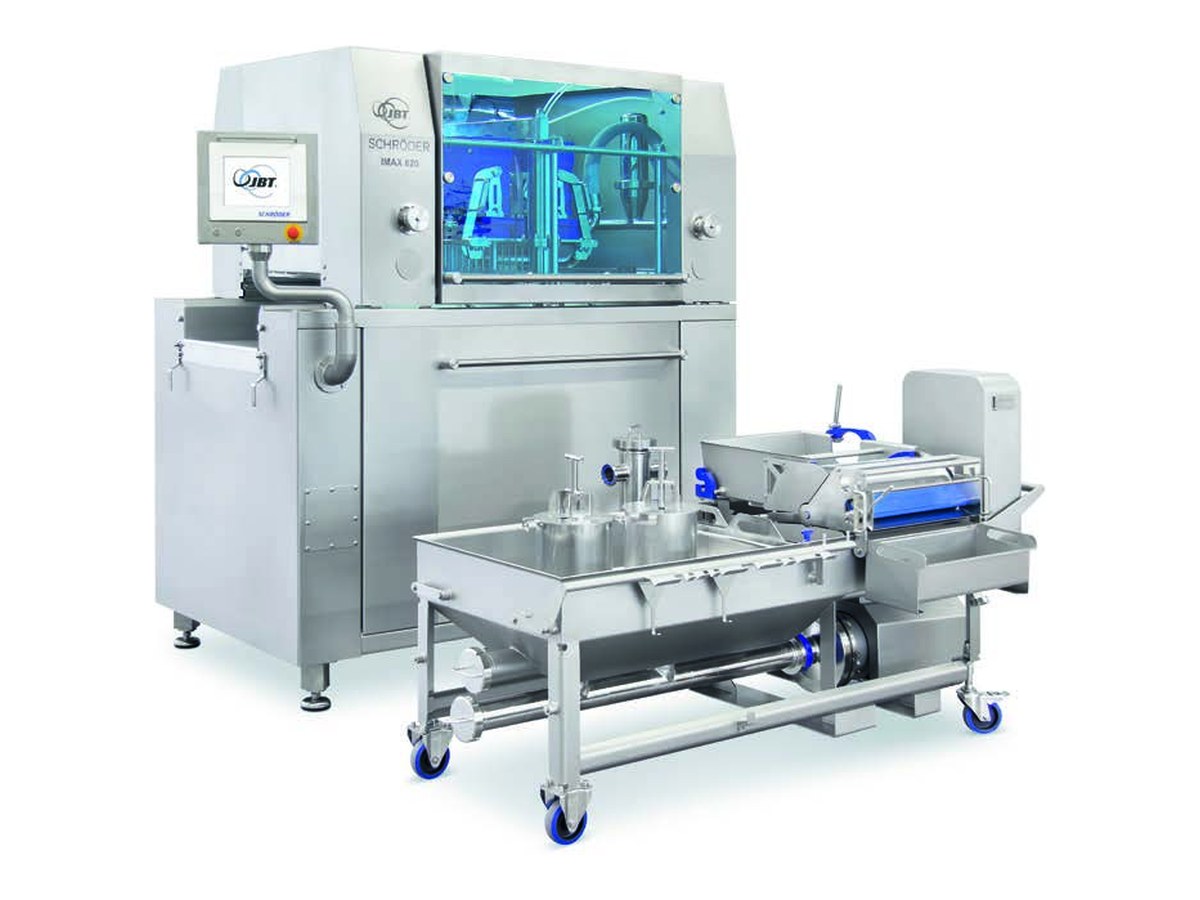

The IMAX 430, 630 and 930 transport the product on a belt: the natural choice for the fish and poultry industries and for all small, delicate products. The very high needle density (up to 900) and low pressure ensure gentle, uniform injection; the advance goes up to 200 mm for high output even with light pieces. Three sizes, up to 920 mm working width.
Schröder · JBT Marel · Injectors and marination
Why choose the Schröder IMAX HIGHline belt
Belt for small, delicate products

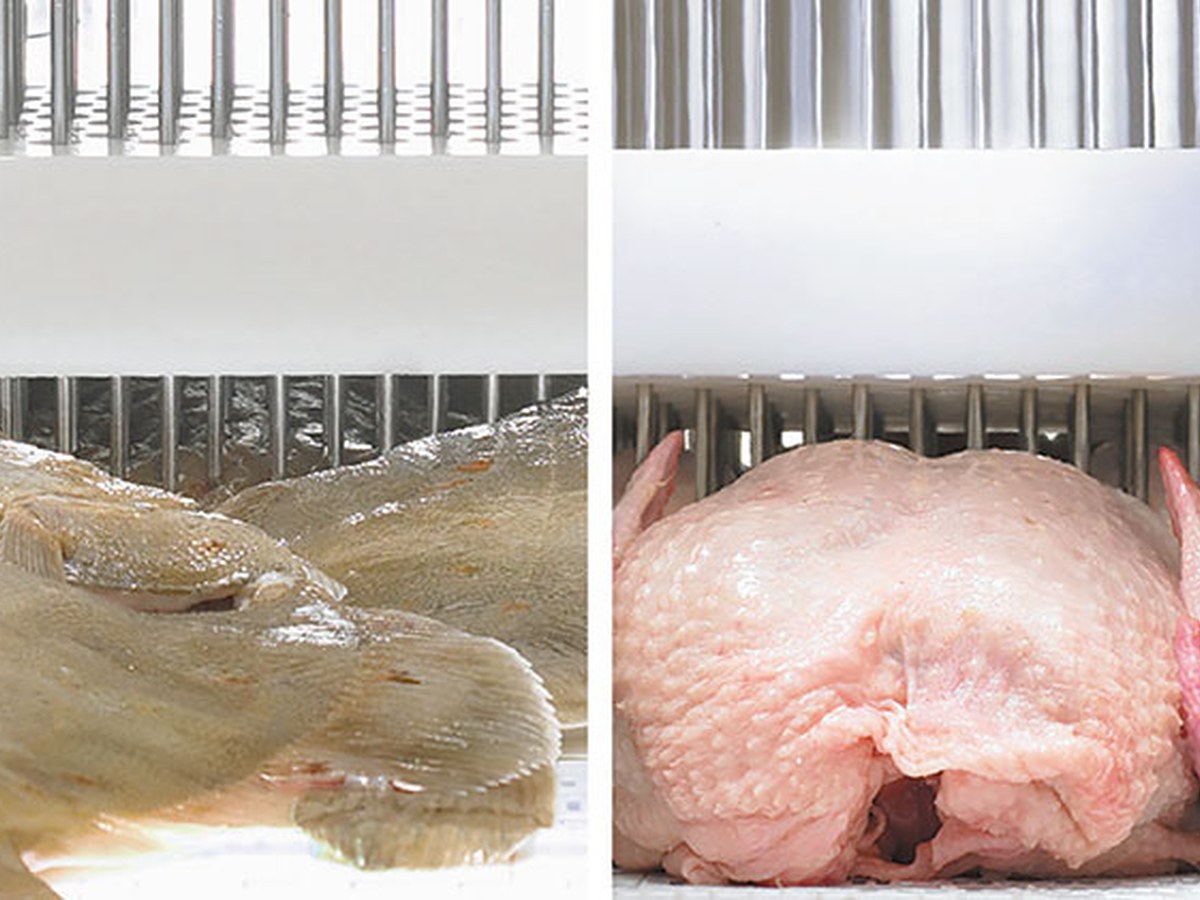

Fish fillets, salmon, chicken parts, light pieces: the belt carries the product without stress, just as the rest of the line does in the fish and poultry industries.

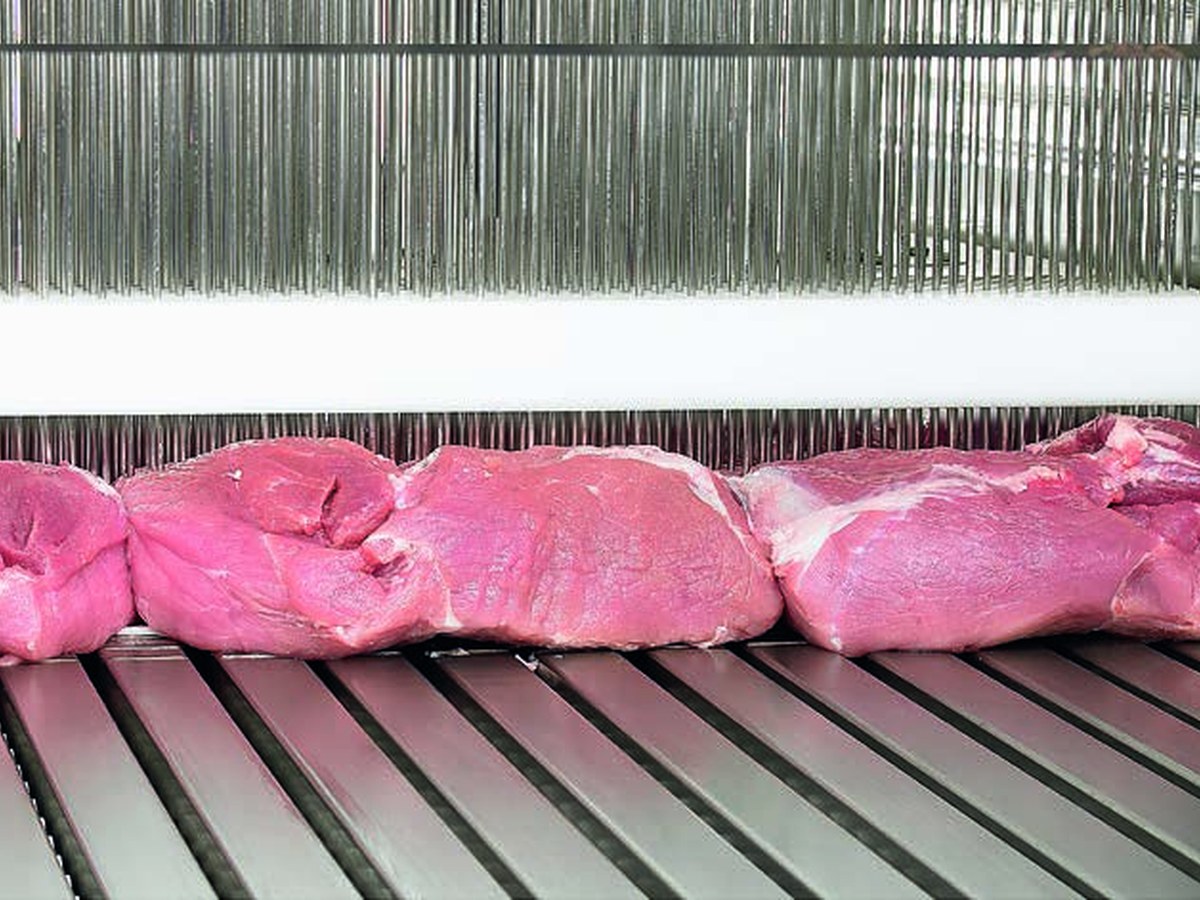

Up to 900 needles at low pressure
The highest needle density in the range and 0.5 to 4.5 bar pressure ensure fine, homogeneous brine distribution even in the most sensitive products.
Advance 50 / 100 / 200 mm
With so many needles the pitch can be extended to 200 mm: high output even with very small and light pieces, without giving up uniformity.

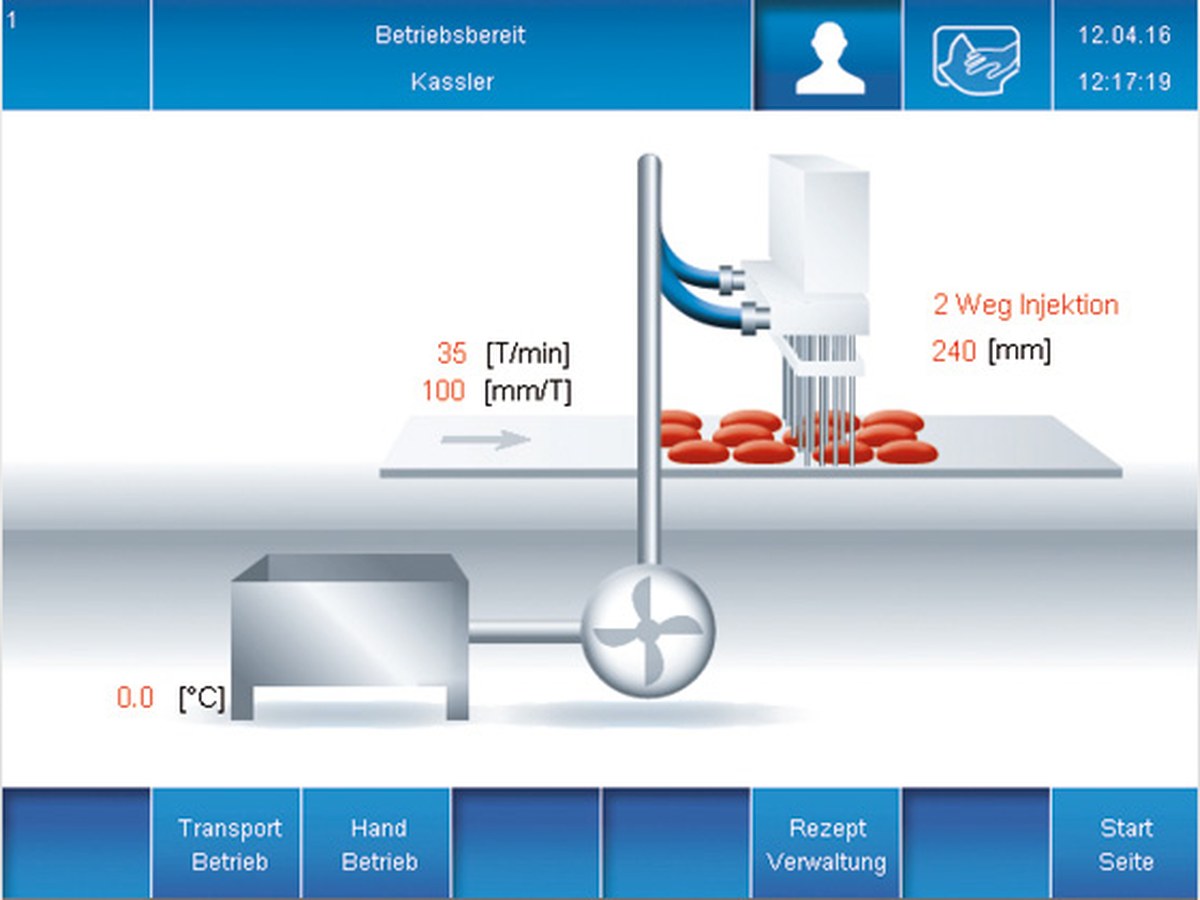

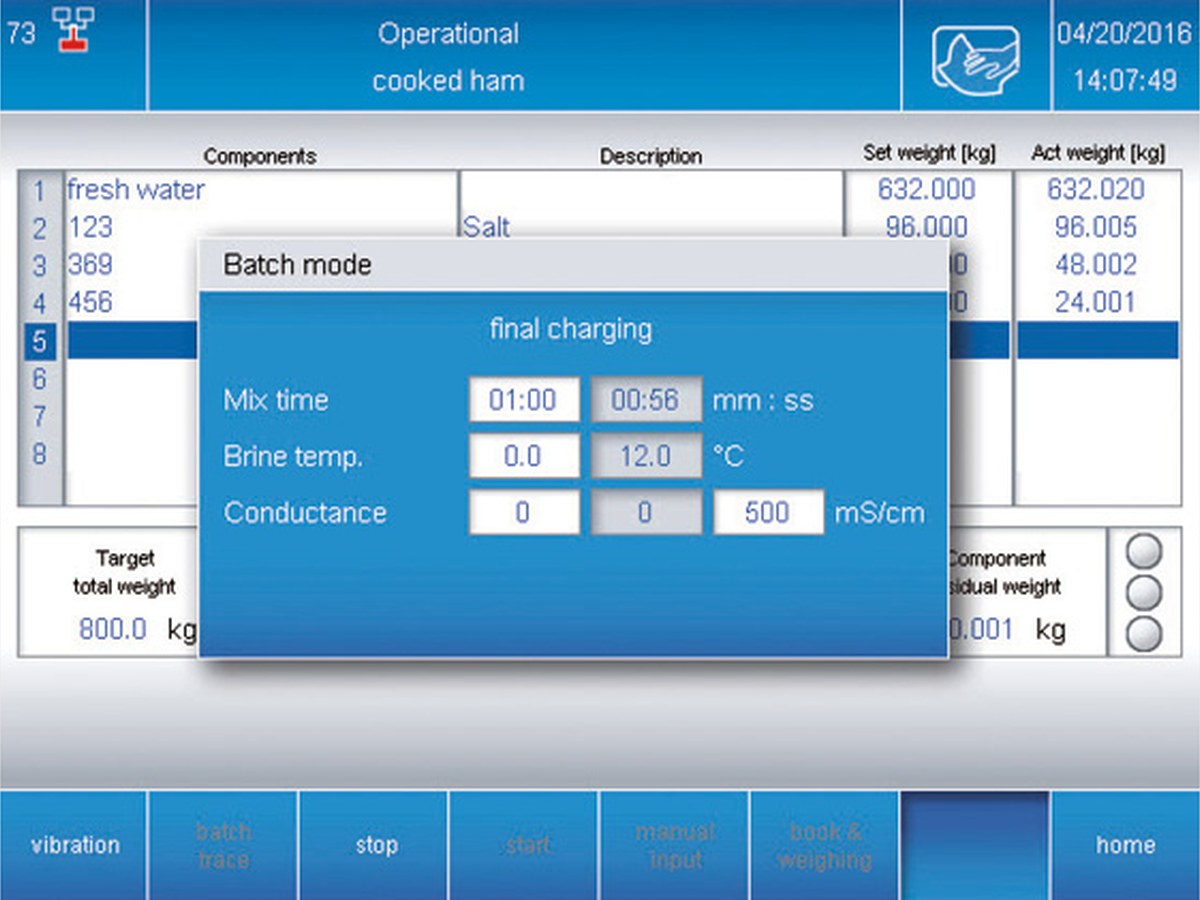

10.4″ touch panel with recipes

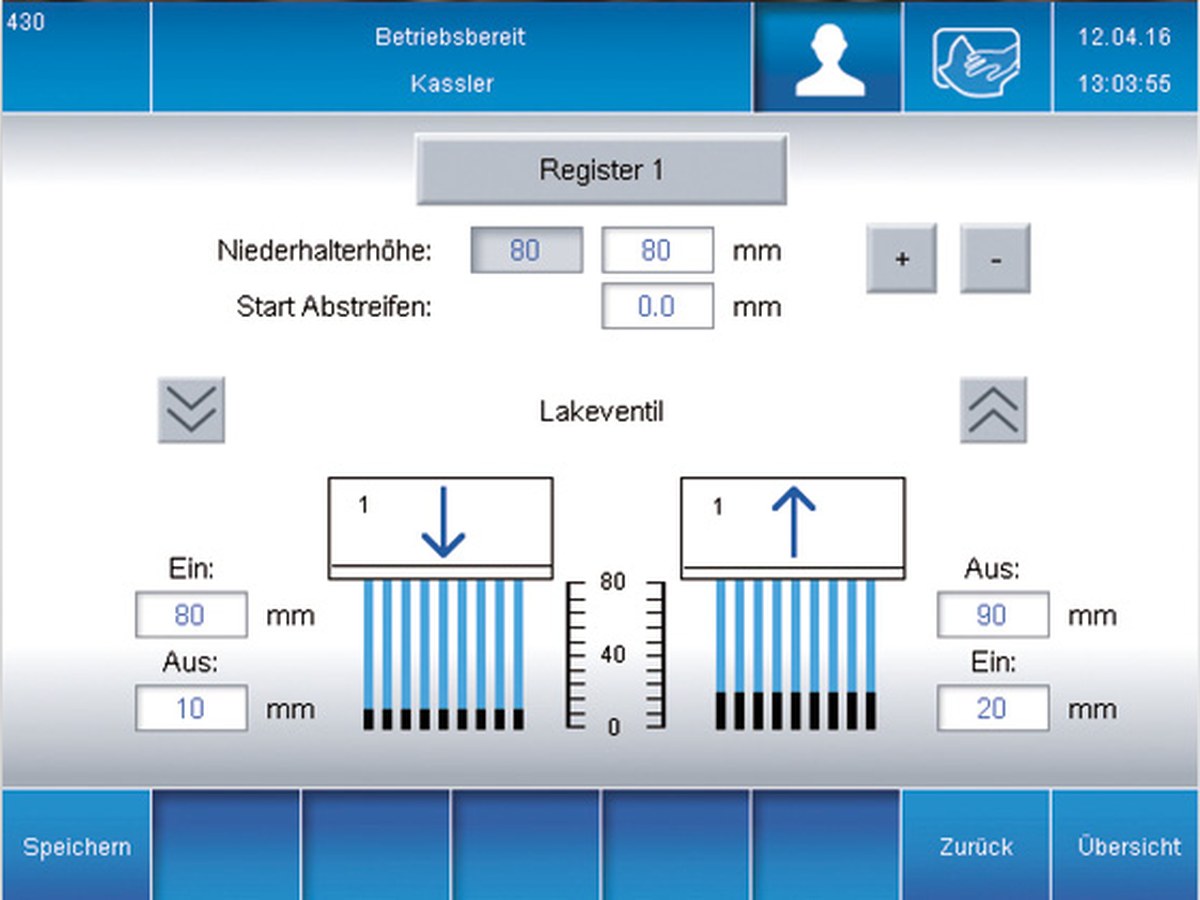

Central controls for pressure, speed and injection mode; user and recipe management; needle manifold visible through the inspection window.
Brine always clean
Self-cleaning rotary filter, brine pressure expansion tank and powerful rotary pump: constant pressure at the needles, no clogged needles.
Designed for sanitation
External, completely removable brine lines, stainless-steel belt and frame, full access for cleaning.
Main specifications — Schröder IMAX HIGHline belt
| Models | IMAX 430 · IMAX 630 · IMAX 930 |
|---|---|
| Channel width | 420 / 620 / 920 mm |
| Max. injection area per hour | 227 / 335 / 497 m² |
| Cycles per minute | 15 – 45 |
| Advance | 50 / 100 / 200 mm |
| Number of needles | depending on the application, up to 900 |
| Pressure range | 0.5 – 4.5 bar |
| Machine length | approx. 3,340 / 3,340 / 3,580 mm |
| Width (with brine basin) | approx. 2,770 / 2,970 / 3,450 mm |
| Height / loading height | approx. 2,240 mm / 1,200 · 1,200 · 1,270 mm |
| Compressed air | min. 6 bar |
| Electrical connection | 3 Ph/PE, 400/440 V, 50/60 Hz (or 220 V) |
| Products | Fish, poultry, small and delicate products, boneless meat |
Schröder IMAX HIGHline belt in detail
Want to know if this is the right machine for your product?
We help you choose size, manifold and needle configuration for your product, with service and spare parts backed by VG Service.
